LASER Profiler

​Determine Internal Pipeline Conditions

​​LASER Profile System: A stand-alone, snap -on tool to collect survey data and create pipeline reports.

PIPE
6"-72"
SIZES
BUILDS
DIGITAL
PROFILE
CARBON
FIBER
CONSTRUCTION
INTERACTIVE
3D
MODELS
  • CUES offers a range of advanced sewer inspection and pipe profiling equipment, such as SONAR, LIDAR, and LASER PROFILING, for those requiring more detailed inspection data.

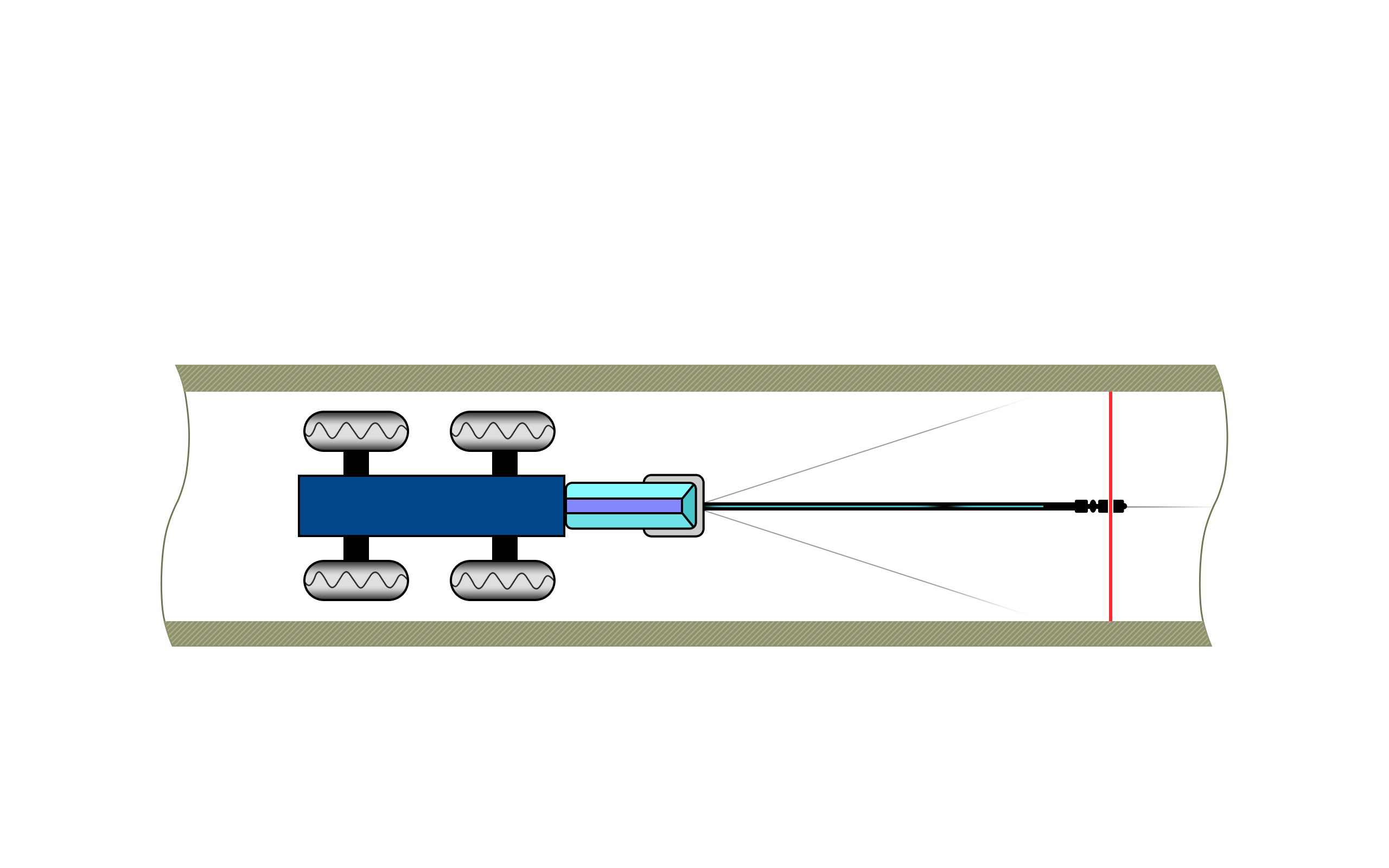

  • A ring of laser light is projected onto the internal pipe surface.
  • Laser image is in the field of view of the camera while the camera moves through the pipe.
  • Analysis is performed on the ring of light using the Laser Profiler software to build a digital pipe profile.
  • For use with live or pre-recorded to video (tape, CD, or DVD).
  • Can operate in pipe sizes ranging from 6” through 72”.
  • The CUES Laser Profiler is a tool for use with a CUES CCTV pipeline inspection survey system and sewer camera to determine internal pipeline conditions prior to and/or after rehabilitation.

Features & Benefits

  • Internally battery powered (rechargeable); no electrical connections are required; no moving parts.
  • Software can be used on a TV inspection vehicle or on a remote computer.
  • Can capture a single frame of video from videotape, previously stored file, CD, DVD, etc, when utilized on a remote computer.
  • Easily attaches to your existing CUES CCTV Camera or Transporter.
  • Designed to capture and display a single frame on the data monitor for measurement and analysis in industry standard formats to include JPEG, BMP, or TIFF formats.
  • Text can be placed anywhere within the captured video image.
  • A line graph displays the cross-sectional amplitude over the entire length of the pipe run from entry to exit access.
  • High-strength carbon fiber and aluminum construction.
  • Designed to obtain the actual degradation of the pipe by utilizing the laser profiling and measurement tools.

Download brochure

INNOVATIVE
LASER LIGHT
CARBON FIBER
PRECISE MEASUREMENTS
LASER PROFILING
PIPE ANALYSIS
