LAMP II
Lateral & Mainline Probe
Equipment Categories
LAMP II: Pan & tilt inspection of ALL lateral connections, with or against the flow! Simultaneous pan, tilt & zoom inspection of mainlines!
SELF
PROPELLED
INSPECTION
TRAVERSE
MULTIPLE
BENDS
ONE
INSPECTION
RUN
SELF-LEVELING
LATERAL
CAMERA

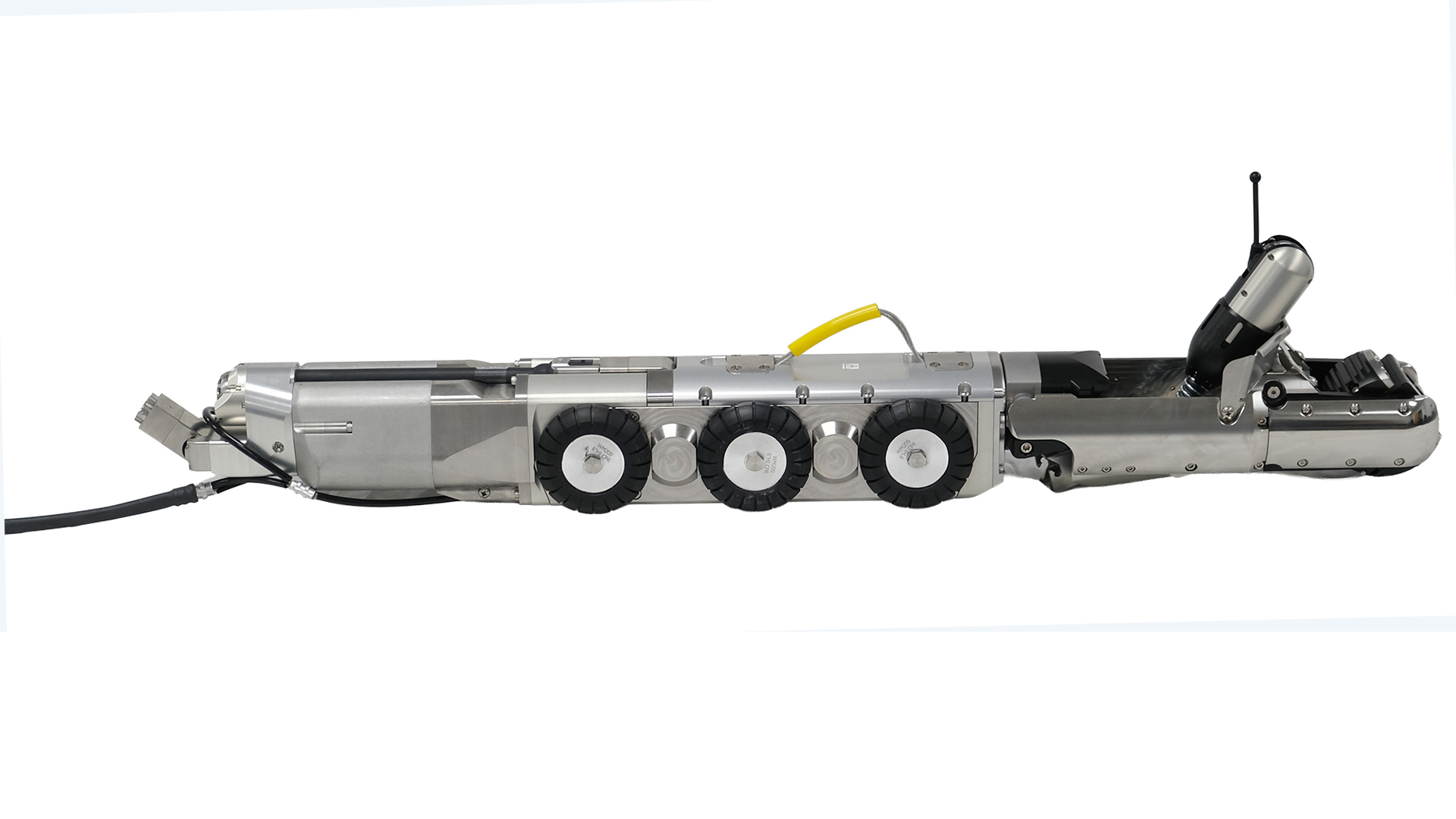

- The self-propelled, robust LAMP II is a CCTV pipeline inspection tool for identifying infiltration and inflow, cross bore inspection, pipe defects, and structural conditions in lateral services and mainlines.

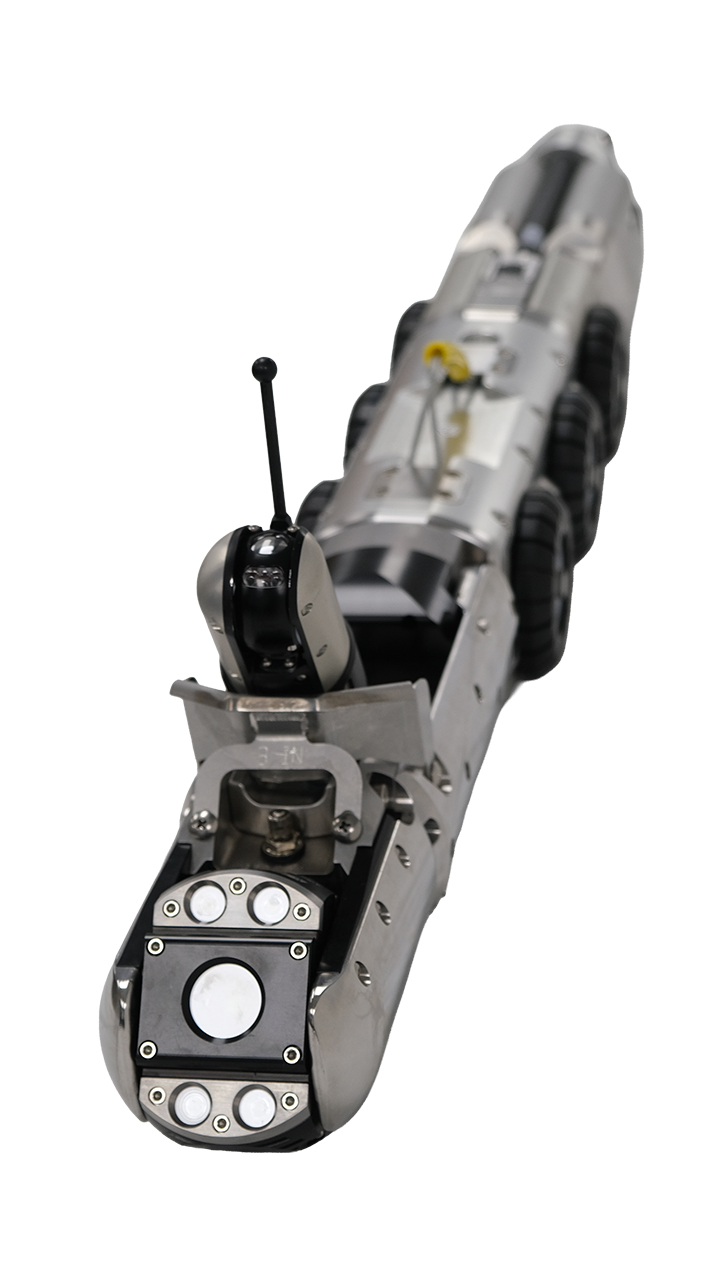

- The LAMP II is a self-propelled lateral launcher, transportation platform, with two cameras, one for pan/tilt/optical zoom operations (mainline) and one for lateral launching.

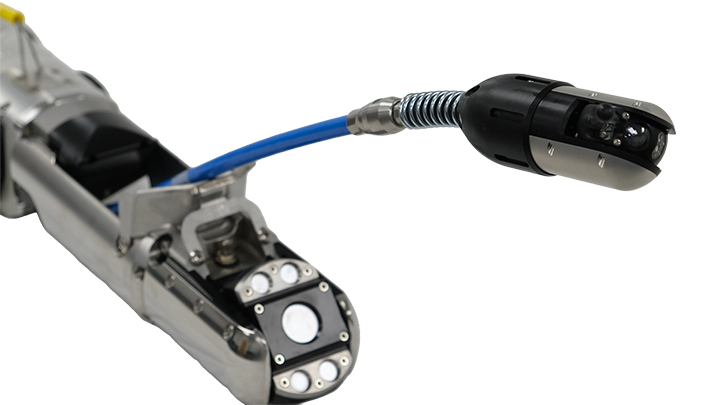

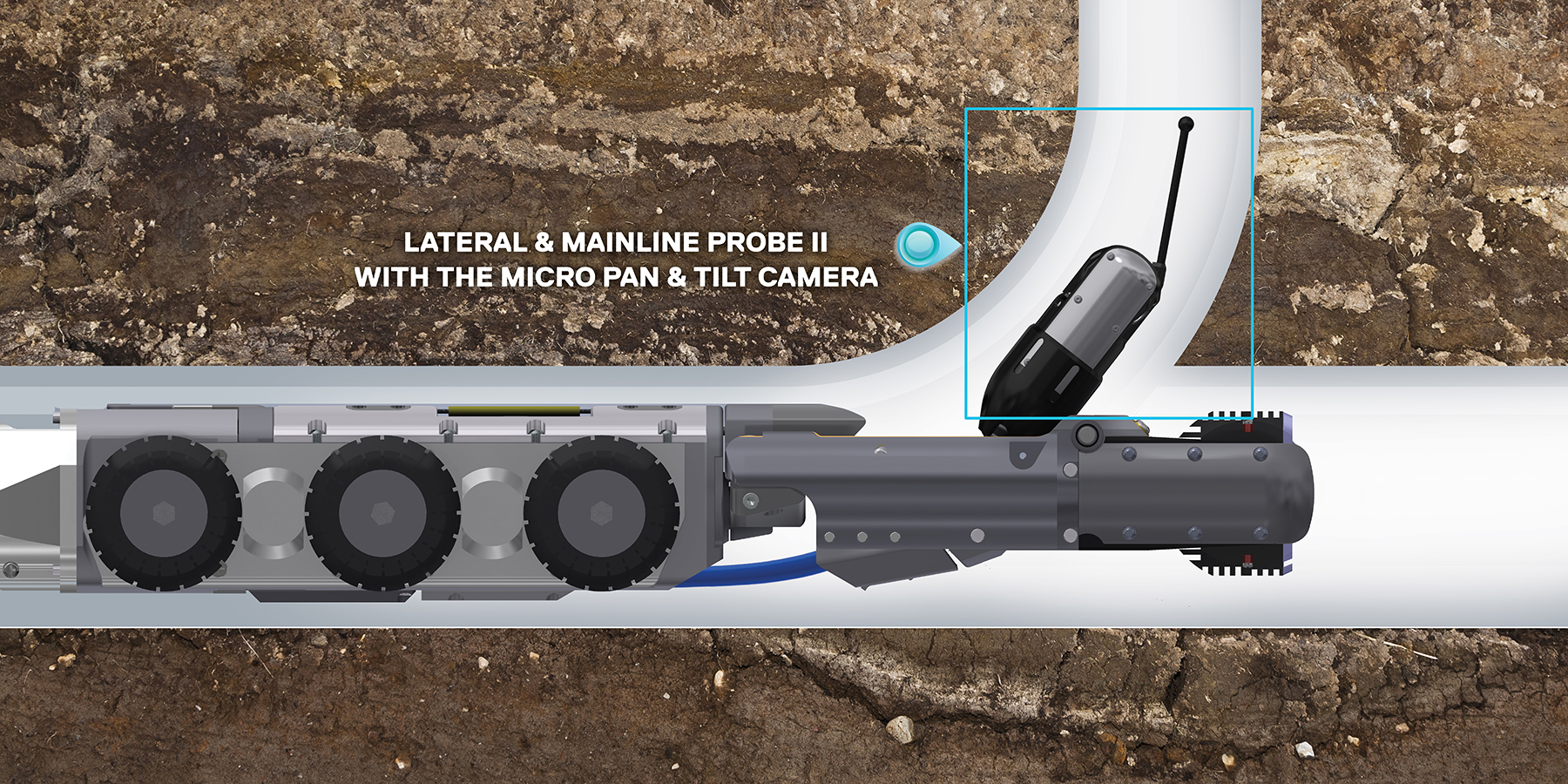

- The LAMP II with the optional Micro Pan & Tilt Camera will inspect laterals services and traverse multiple bends and wyes when deployed with or against the flow.
- Pan & tilt inspection of ALL lateral connections, with or against the flow.
- Simultaneous pan, tilt & zoom inspection of mainlines.
Features & Benefits
- Easily launches with or against the flow.
- Inspect mainlines and laterals with one inspection run.
- Front-mounted pan and tilt / zoom camera (40:1 optical/digital zoom): Completes mainline inspection and monitors lateral camera; Articulates to facilitate invert entry; Automatic centering.
- Traverse up to 1,000’ of mainline pipe while still being able to launch into laterals.
- Self-leveling lateral camera with built in sonde.
- Supplied with 4 sets of wheels for 6”-30” lines.
- Traverses 45 and 90 degree bends in lateral services.
- Fiberglass push cable: up to 150 ft. push cable.
- Rear tip-up connector.
- Optional Equipment: micro pan & tilt lateral camera with directional rod for steering; rear-view camera; high traction steel wheel sets; big pipe package available to increase pipe size range to 36”.
- Robust 6 wheel drive with single point wheel removal.
- Can be added onto existing CUES units.
Operation Manual
The LAMP II operation manual is available for download. We strongly recommend that you periodically check when a revised manual is made available.
