Kangaroo & Giant Kangaroo
Lateral Reinstatement Cutters
Equipment Categories
Kangaroo Cutters: Designed for use after the pipe lining process is complete.
SMALL CUTTER:
6"-12"
PIPE
LARGE CUTTER:
12"-30"
PIPE
REINSTATE
WASTEWATER
LATERALS
REMOVE
PROTRUDING
TAPS
- These cutters are rugged, waterproof, and built to withstand the shock and vibration of everyday use
- CUES Giant and Small Kangaroo Cutters are equally effective in CIPP or Fold and Form liners.
- Can be installed on most CCTV manufacturer’s system.
- Can be operated with the Dual Kangaroo Cutter controller.
- Both Cutter systems perform optimally using 1000'-1500’ of cable.
Features & Benefits
BOTH SMALL & GIANT KANGAROO CUTTERS:
- 110 or 220 VAC.
- Requires (8) Conductors: (6) for the cutter and (2) for the reel mounted remote air valve.
- Recommended minimum air requirements: 38 CFM @ 125 psi.
- Controls, Electrical: 360-degree rotate, up/down, in/out, on/off, and polarity.
- Controls, Pneumatic: cutter motor, cutter locking brake.
- Includes (3) 24v DC electrical drive motors assembled into a waterproof housing.
- Includes (2) router bits and pipe lock assembly.
SMALL KANGAROO CUTTER ONLY:
- For use in 6” - 12” Diameter Relined Pipe.
- Includes low profile metal skids for 6” pipe mounted to the cutter housing and extenders for 8” and up.
- Includes a .9hp air motor to provide more power, increased productivity, and a smoother cut when operating in 8” - 12” relined pipe.
GIANT KANGAROO CUTTER ONLY:
- For use in 12” - 30” Diameter Relined Pipe.
- Removes protruding lateral services.

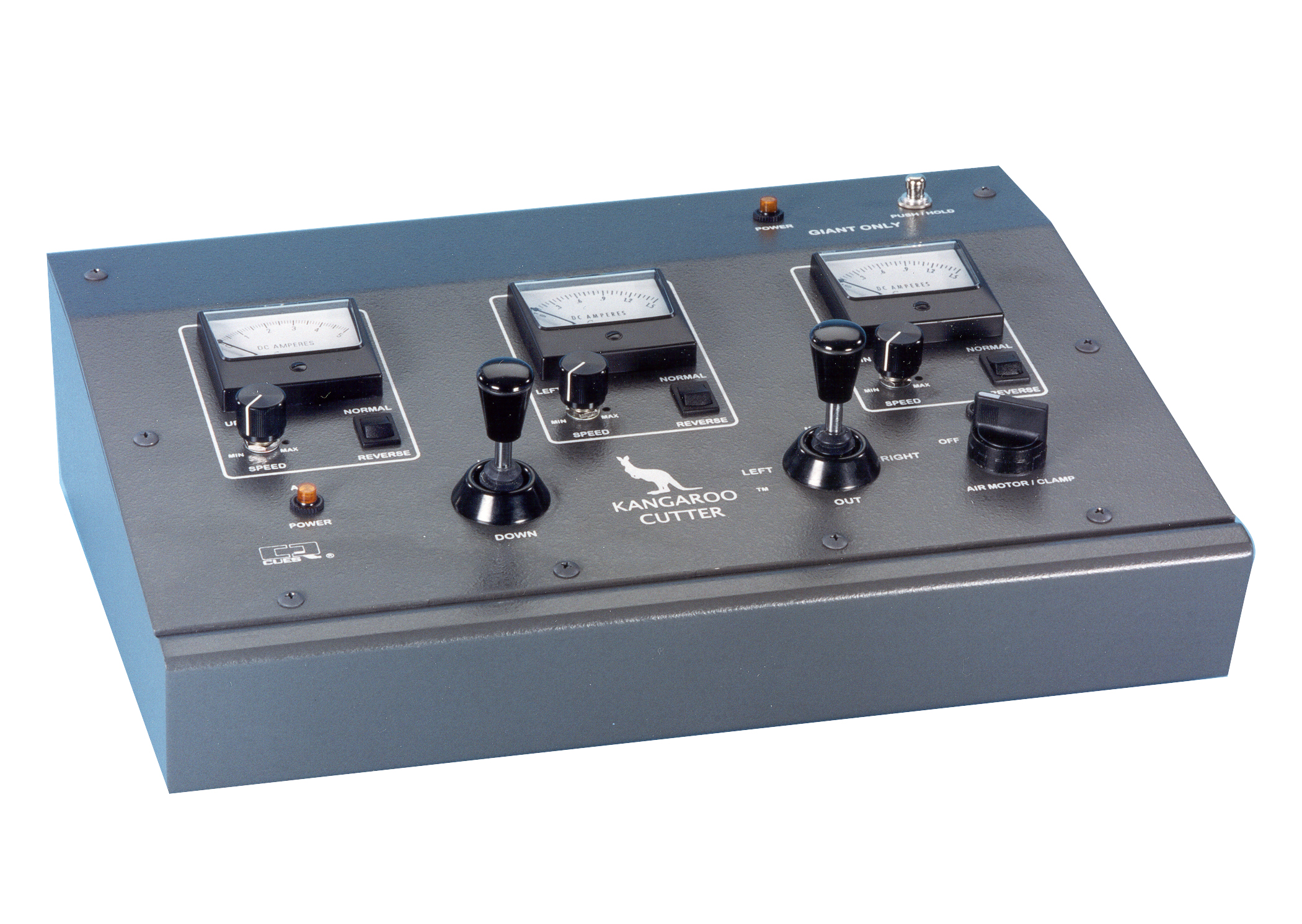

DUAL KANGAROO CUTTER CONTROLLER:
- Operates both Large and Small Kangaroo Cutter.
- Includes all switches, potentiometers, controls, and meters required to operate and monitor the Giant Kangaroo and Small Kangaroo Cutter.
- Controls the cutter head movements in (6) directions: IN / OUT, RIGH T / LEFT ROTATION, and UP / DOWN.
- A rotary potentiometer is provided to adjust the speed of each control motor.
- An Amp meter is provided to display the current draw by each motor.
- The Air Motor/Clamp - ON/OFF switch opens and closes the air flow of the remote air solenoid while simultaneously activating or deactivating the pipe lock system and cutter air motor.
