​CUES-IMX Manhole Camera

​PRECISE manhole inspection to help prioritize and identify sewer issues.

Use the CUES-IMX Manhole Camera to inspect your manholes and mainline pipes.

PRECISE
MANHOLE
INSPECTION
25X
OPTICAL
ZOOM
300X
ZOOM
RATIO
IDENTIFY
SEWER
ISSUES
  • Optical Zoom Range: 25x; Digital Zoom Range: 1x through 12x
  • Total effective zoom ratio: 300x
  • Four (4) LED spot lights have a total light output equivalent to 200 watts of halogen light.
  • One (1) LED flood light has a total light output equivalent to 50 watts of halogen light.
  • Prevents the need for an operator to enter the manhole to position and/or reposition the camera height.

Features & Benefits

  • Manhole inspection with live video to help prioritize and identify sewer issues.
  • Swiftly locate problem areas of the pipe.
  • Quickly identify maintenance requirements and identify structural defects to prevent sewer overflows.
  • Helps you comply with CMOM & GASB34 requirements. Designed for use in pipes 6” in diameter and up with the ability to illuminate and inspect manholes and large diameter pipes at distances up to 300’.
  • Designed to provide close-up views of manholes and pipes.

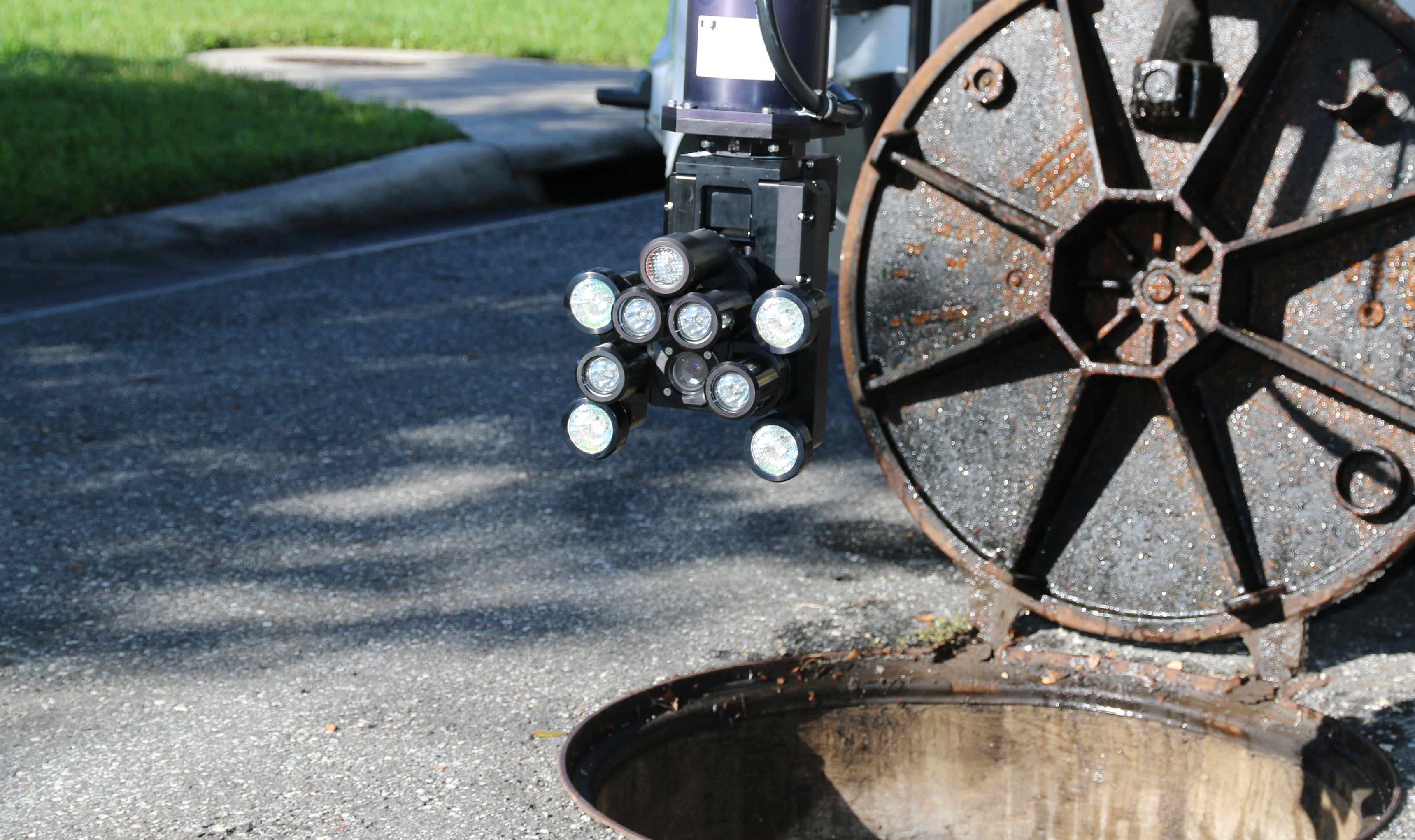

  • Base unit consists of the following: boom, mast, controller, camera, and integral/external lighting.
  • Designed to gage the manhole depth.
  • Mast is designed to position the camera 50 ft below the surface of the road.
  • Optional compass is available to support GIS systems.

System Equipment

CAMERA

  • Optical Zoom Range: 25x; Digital Zoom Range: 1x through 12x
  • Total effective zoom ratio: 300x
  • Remotely controlled from the control console.
  • The mounting fork is designed to pan the camera head 360 degrees continuously, tilt mechanically 35 degrees up, 90 degrees down, and tilt optically 166 degrees; camera forks are rounded or chamfered and do not exceed 5 inches in diameter.
  • The camera imager, optics, mechanics, and electronics are housed in a damage resistant, waterproof, rugged enclosure.

LIGHTING

  • Camera Integral LED Lighting - The camera includes (4) LED spot lights and one (1) flood light centered above the lens
  • Each of the five (5) lights are individually sealed to prevent water entry.
  • Four (4) LED spot lights have a total light output equivalent to 200 watts of halogen light.
  • One (1)  LED flood light has a total light output equivalent to 50 watts of halogen light.
  • Medium External Lightheads - The camera includes two (2) quick disconnect external lighthead assemblies, each lighthead assembly consisting of two lightheads on each side of the camera.
    - The high performance lightheads provide a total of 340 watts of light, 170 watts per lighthead assembly.
    - External lighting is designed to move relative to the camera lens to provide directional illumination.
  • Large External Lightheads - Two quick disconnect large external lighthead assemblies for inspection of pipelines 18” diameter to 84”.

MAST SYSTEM

  • The truck-mounted mast can position the camera 50 ft below the surface of the road and is designed to achieve optimum picture stability throughout the optical zoom range of the camera.
  • The camera unit can be electronically raised and lowered.
  • Prevents the need for an operator to enter the manhole to position and/or reposition the camera height.
  • Perform manhole & mainline inspections and gauge the manhole depth without the need for a camera transporter!
  • Can be installed on existing TV inspection systems without the need for modifications to other existing equipment already installed on the unit.

Download brochure

MANHOLE INSPECTIONS
REMOTE CONTROLLED
LIVE VIDEO
300X ZOOM RATIO
CAMERA HID LIGHTING
MAINLINE INSPECTIONS

​Interested in Learning More?

Trust CUES, the industry leader, for all of your pipeline inspection and rehabilitation equipment needs! Please use the form to request any additional information regarding CUES products so we can help you Go the Distance.
